Description

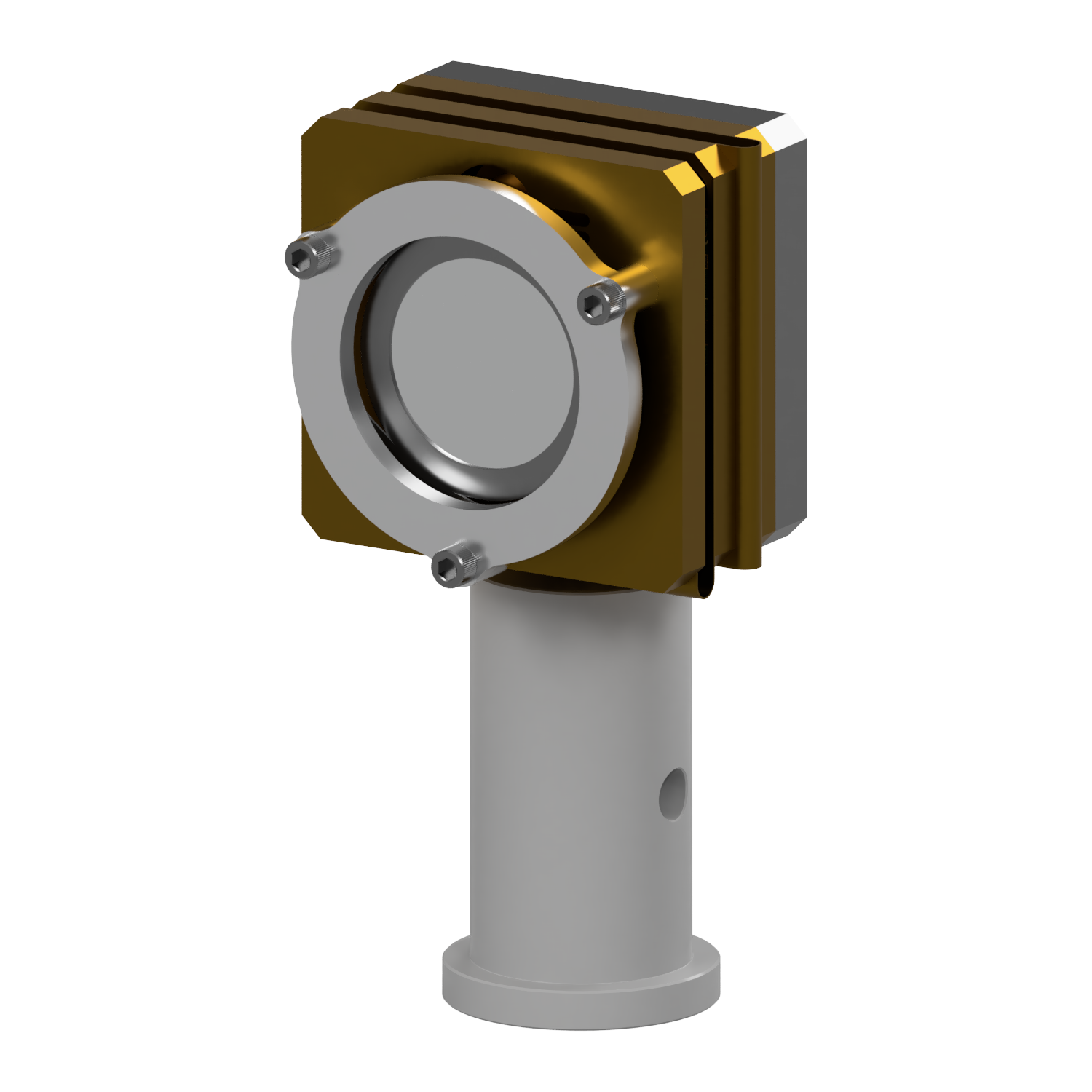

The RC Motorized variant is AlignFlow™ — our smart mirror: a monolithic single-body mount with integrated geared stepper actuators, Hall-effect tilt feedback, and a Wi-Fi controller running an open-source library. Drop it into your beamline and align it from across the lab — or let your control script do it while you go grab a coffee.
Each axis is driven by geared stepper motors on ultra-high-density threads, with sub-10-nrad step resolution and zero backlash. Closed-loop feedback is provided by an integrated Hall-effect sensor that measures mirror tilt directly with high precision. The mount communicates over Wi-Fi (2.4 GHz) and exposes a documented Python API — no proprietary handset, no separate controller box.
Key features
- Open-source Python control library
- Step resolution < 10 nrad/step
- Closed-loop tilt feedback via integrated Hall-effect sensor
- Wi-Fi interface (2.4 GHz)
- Vacuum-compatible (not for cryogenic use)
- Hands-off remote alignment for sealed enclosures
Applications
- Sealed laser enclosures and interlocked cabinets
- Remote or automated alignment in production
- Continuous beam stabilization with custom feedback loops
- Ultra-high vacuum chambers and beamlines
- Quantum optics and atom-trapping experiments
- Long-baseline interferometry alignment
Backed by a 12-month warranty. Need a different feedback loop, a custom aperture, or radiation-hardened operation? Contact our engineering team — and remember, the library is open, so you can start there.
